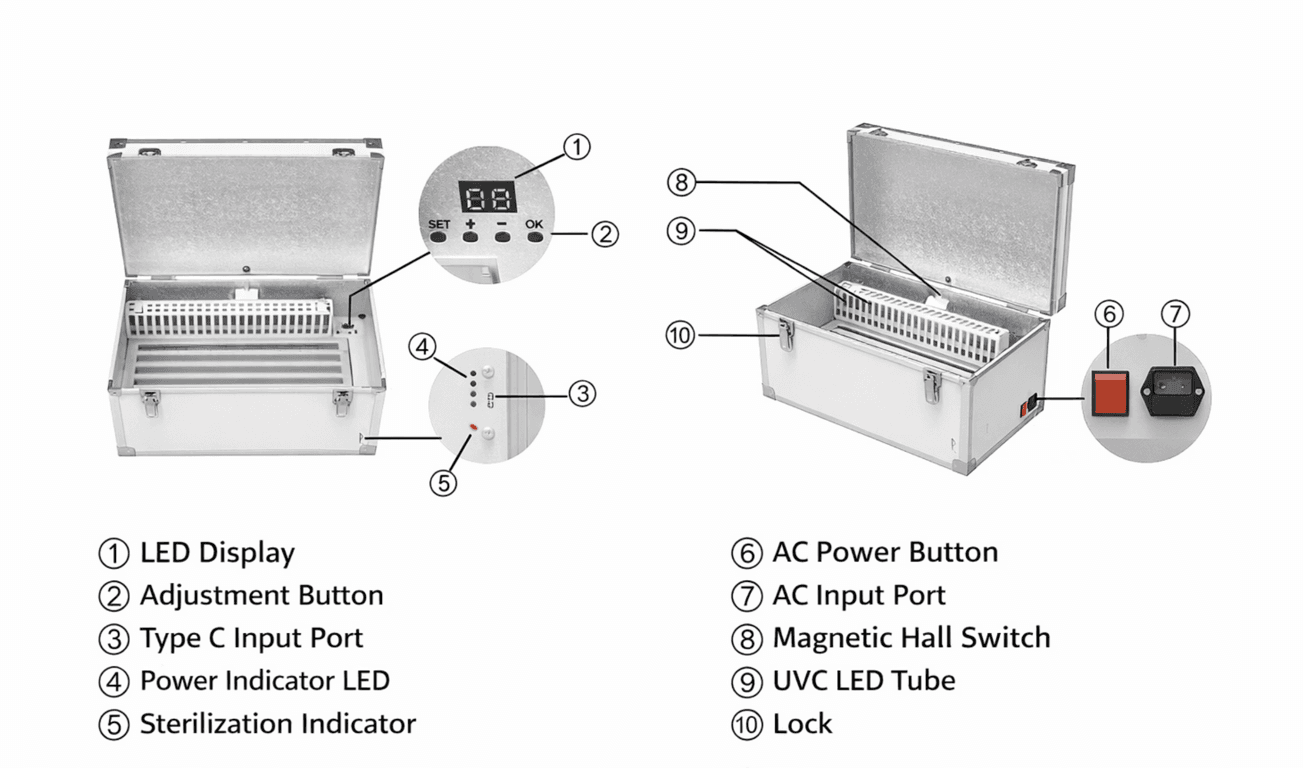

Labels

1. LED Display
2. Adjustment Button
3. USB Type-C Input Port
4. Power Indicator LED
5. Sterilization Indicator
6. AC Power Button
7. AC Input Port
8. Hall Magnetic Switch
9. UVC LED Tube
10. Locking Mechanism

Connect the box to a power source using either the supplied AC power cable or a USB Type-C cable connected to a DC power source (such as a wall charger). Press the power button marked in red. The LED indicator will blink, confirming that charging has started.

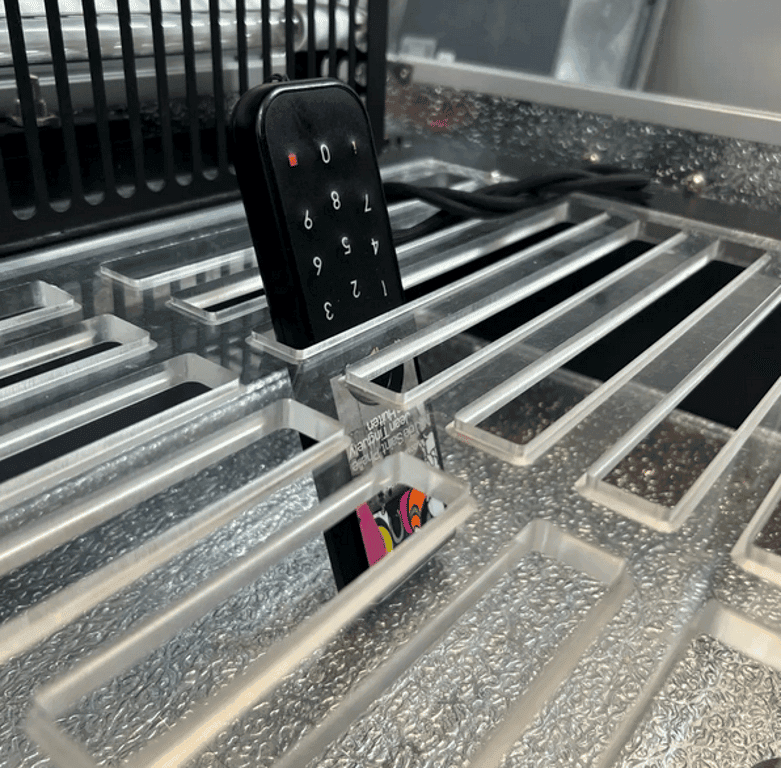

Open the lid and place the item you want to sterilize inside the box. Make sure it is positioned properly before closing the lid.

Press the SET button to enter time-setting mode. The LED display will blink.

Use the “+” and “–” buttons to adjust the sterilization time (from 1 to 30 minutes), then press OK to confirm. The left digit represents tens and the right digit represents units. Press SET again to switch between them.

Close the box securely. Sterilization will start automatically once the lid is closed. A blinking indicator light shows that the process is running.

When sterilization is complete, the device will emit a sound notification and the indicator light will turn off. You can now open the box and remove the item.

The box uses a contactless magnetic Hall safety switch. Opening the lid immediately stops sterilization; closing it restarts the process. The device supports charging and sterilizing at the same time. If external power is disconnected, the internal battery will continue powering the sterilization cycle.

• The box uses a contactless magnetic Hall safety switch. Opening the lid immediately stops sterilization; closing it starts the process again.
• The device supports charging and sterilizing at the same time.
• If external power is disconnected during use, the internal battery will continue to power the sterilization cycle.
• If the LED display does not blink when pressing SET, recharge the battery before use.
• A sterilization time of 5 minutes is recommended for standard use.
